Outline

• Streaming kernels
  • Threshold
  • Transpose
• Reduction
• Optimizing control flow

Threshold

Pixel per thread

$$y=\max (x,\tau )$$

__global__ threshold_bw(const DPtrb src, DPtrb dst,
    int32s cols, int32s rows, int8u thr)
{
     const int x = blockDim.x * blockIdx.x + threadIdx.x;
     const int y = blockDim.y * blockIdx.y + threadIdx.y;

     if (x < cols && y < rows)
         dst.row(y)[x] = max(thr, src.row(y)[x]);
}

Adjusting launch parameters for specific hardware

Threshold

Pixel per thread: results

Threshold

Kernel unrolling: image row per warp

__global__ threshold_bw(const DPtrb src, DPtrb dst,
    int32s cols, int32s rows, int8u thr)
{
    int block_id = (blockIdx.y*gridDim.x+blockIdx.x) * (blockDim.x / warpSize);
    int y = (threadIdx.y*blockDim.x+threadIdx.x) / warpSize + block_id;

    if (y < rows)
        for (int x = lane(); x < cols; x += warpSize)
            dst.row(y)[x] = max(thr, src.row(y)[x]);
}

Threshold

Kernel unrolling: more independent elements

// same as previous
unsigned char tmp[2];
if (y * 2 < rows - 2)
    for (int x = lane(); x < cols; x += warpSize)
    {
        tmp[0] = max(threshold, src.row(y * 2)[x]);
        tmp[1] = max(threshold, src.row(y * 2+ 1)[x]);

        dst.row(y * 2)[x] = tmp[0];
        dst.row(y * 2 + 1)[x] = tmp[1];
    }
else {/*compute tail*/ }

Threshold

Kernel unrolling: use wider transactions

unsigned char -> unsigned integer

template<typename T> __device__ __forceinline__ T vmin_u8(T,T);
template<> __device__ __forceinline__ unsigned vmin_u8(unsigned v, unsigned m)
{
    unsigned int res = 0;
    asm("vmax4.u32.u32.u32 %0, %1, %2, %3;" : "=r"(res) : "r"(v),"r"(m),"r"(0));
    return res;
}

// same as previous
if (y < rows)
    for (int x = lane(); x < cols / sizeof(int8u); x += warpSize)
    {
        int32u tmp = src.row<unsigned int>(y)[x];
        int32u res = vmin_u8(tmp, mask);
        dst.row<unsigned int>(y)[x] = res;
    }

Threshold

Wider transactions : results

Transpose

$$D_{\mathrm{i,j}}=S_{\mathrm{j,i}}$$

template <typename T> __global__
void transposeNaive(const DPtr<T> idata, DPtr<T> odata, int cols, int rows)
{
    int xIndex = blockIdx.x * blockDim.x + threadIdx.x;
    int yIndex = blockIdx.y * blockDim.y + threadIdx.y;

    odata.row(xIndex)[yIndex] = idata.row(yIndex)[xIndex];
}

Transpose

Coalesce memory access: smem usage

• Split the input matrix into tiles, assigning one thread block for one tile. Tile size (in elements) and block size (in threads) are not necessarily the same.
• Load tile in coalesced fashion to smem -> read from smem by column -> write to destination in coalesced fashion.

Coalesce memory access: smem usage code

template <typename T>__global__
void transposeCoalesced(const DPtr<T> idata, DPtr<T> odata,
    int cols, int rows)
{
    __shared__ float tile[TRANSPOSE_TILE_DIM][TRANSPOSE_TILE_DIM];

    int xIndex = blockIdx.x * TRANSPOSE_TILE_DIM + threadIdx.x;
    int yIndex = blockIdx.y * TRANSPOSE_TILE_DIM + threadIdx.y;
    for (int i = 0; i < TRANSPOSE_TILE_DIM; i += TRANSPOSE_BLOCK_ROWS)
        tile[threadIdx.y + i][threadIdx.x] = idata.row(yIndex + i)[xIndex];

    __syncthreads();

    xIndex = blockIdx.y * TRANSPOSE_TILE_DIM + threadIdx.x;
    yIndex = blockIdx.x * TRANSPOSE_TILE_DIM + threadIdx.y;
    for (int i = 0; i < TRANSPOSE_TILE_DIM; i += TRANSPOSE_BLOCK_ROWS)
        odata.row(yIndex + i)[xIndex] = tile[threadIdx.x][threadIdx.y + i];
}

Transpose

Smem accesses: avoid bank conflicts

template <typename T>__global__
void transposeCoalescedPlus1(const DPtr<T> idata, DPtr<T> odata,
    int cols, int rows)
{
    __shared__ float tile[TRANSPOSE_TILE_DIM][TRANSPOSE_TILE_DIM + 1];

    int xIndex = blockIdx.x * TRANSPOSE_TILE_DIM + threadIdx.x;
    int yIndex = blockIdx.y * TRANSPOSE_TILE_DIM + threadIdx.y;
    for (int i = 0; i < TRANSPOSE_TILE_DIM; i += TRANSPOSE_BLOCK_ROWS)
        tile[threadIdx.y + i][threadIdx.x] = idata.row(yIndex + i)[xIndex];

    __syncthreads();

    xIndex = blockIdx.y * TRANSPOSE_TILE_DIM + threadIdx.x;
    yIndex = blockIdx.x * TRANSPOSE_TILE_DIM + threadIdx.y;
    for (int i = 0; i < TRANSPOSE_TILE_DIM; i += TRANSPOSE_BLOCK_ROWS)
        odata.row(yIndex + i)[xIndex] = tile[threadIdx.x][threadIdx.y + i];
}

Transpose

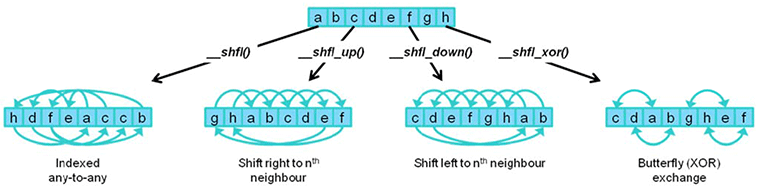

Warp shuffle

Transpose

Transpose shuffle

Transpose

Transpose shuffle code

__global__ void transposeShuffle(
    const DPtr32 idata, DPtr32 odata, int cols, int rows)
{
    int xIndex = blockIdx.x * blockDim.x + threadIdx.x;
    int yIndex = blockIdx.y * blockDim.y + threadIdx.y;
    int yIndex1 = yIndex * SHUFFLE_ELEMENTS_VECTORS;

    yIndex *= SHUFFLE_ELEMENTS_PERF_WARP;

    int4 reg0, reg1;

    reg0.x = idata.row(yIndex + 0)[xIndex];
    reg0.y = idata.row(yIndex + 1)[xIndex];
    reg0.z = idata.row(yIndex + 2)[xIndex];
    reg0.w = idata.row(yIndex + 3)[xIndex];

    reg1.x = idata.row(yIndex + 4)[xIndex];
    reg1.y = idata.row(yIndex + 5)[xIndex];
    reg1.z = idata.row(yIndex + 6)[xIndex];
    reg1.w = idata.row(yIndex + 7)[xIndex];

continued on the next slide...

Transpose

Transpose shuffle code (cont.)

    unsigned int isEven = laneIsEven<unsigned int>();
    int4 target = isEven ? reg1 : reg0;

    target.x = __shfl_xor(target.x, 1);
    target.y = __shfl_xor(target.y, 1);
    target.z = __shfl_xor(target.z, 1);
    target.w = __shfl_xor(target.w, 1);

    const int oIndexY = blockIdx.x * blockDim.x + (threadIdx.x >> 1) * 2;
    const int oIndexX = yIndex1 + (isEven == 0);

    if (isEven) reg1 = target; else reg0 = target;

    odata(oIndexY + 0, oIndexX, reg0);
    odata(oIndexY + 1, oIndexX, reg1);
}

Transpose

Results

Block reduction approaches

Ranking

__global__ void reduceRanking(const int *idata, int *odata, size_t N )
{
    extern __shared__ int* partials;
    int thread_partial = thread_reduce(idata, N);
    partials[threadIdx.x] = sum;
    __syncthreads();
    if (threadIdx.x < 512) partials[threadIdx.x] += partials[threadIdx.x + 512];
    __syncthreads();
    if (threadIdx.x < 256) partials[threadIdx.x] += partials[threadIdx.x + 256];
    __syncthreads();
    if (threadIdx.x < 128) partials[threadIdx.x] += partials[threadIdx.x + 128];
     __syncthreads();
    if (threadIdx.x < 64)  partials[threadIdx.x] += partials[threadIdx.x + 64];
    __syncthreads();
    if (threadIdx.x < 32) warp_reduce(partials);
    if (!threadIdx.x) odata[blockIdx.x] = partials[0];
}

Block reduction approaches

Warp reduce

template<int SIZE>
__device__ __forceinline__ void warp_reduce(int val, volatile int* smem)
{
    #pragma unroll
    for (int offset = SIZE >> 1; offset >= 1 ; offset >>= 1 )
        val += __shfl_xor( val, offset );

    int warpId = warp::id();
    int laneId = warp::lane();
    if (!laneId) smem[warpId] = val;
}

Block reduction approaches

warp-centric reduction

__global__ void reduceWarpCentric(const int *idata, int *odata, size_t N )
{
    __shared__ int partials[WARP_SIZE];
    int thread_partial = thread_reduce(idata, N);
    warp_reduce<WARP_SIZE>(thread_partial, partials);
    __syncthreads();

    if (!warp::id())
      warp_reduce<NUM_WARPS_IN_BLOCK>(partials[threadIdx.x], partials);
    if (!threadIdx.x) odata[blockIdx.x] = partials[0];
}

Block reduction approaches

Results

Sliding window detector

function isPedestrain(x)
d ← 0
for t = 1...T do
    d ← d + C(x)
    if d < rt then
        return false
    end if
end for
return true
end function

Sliding window detector

Thread per window

Thread per window: analysis

• Coalesced access to gmem in the beginning
• Sparse access to the latest stages
• Unbalanced workload. Time of block residence on SM is
  T(b) = max{T(w_0) , ..., T(w_blok_size) }
• Warp processes 32 sequential window positions, so it likely diverge

Sliding window detector

Warp per window

Sliding window detector

Warp per window: analysis

• All lanes in a warp load different features. Access pattern is random
• Textures are used to amortize random pattern
• Work balanced for a warp. Warps in a block compute neighboring windows . Likelihood that block needs same number of features is hight
• Use warp-wide prefix sum for decision making.

for ( int offset = ExecutionPolicy::warp_pixels; offset < 32; offset *= 2)
{
    asm volatile  ( " { "
    " .reg .f32 r0 ; "
    " .reg .pred p ; "
    " shfl.up.b32 r0|p , %0 , %1 , 0x0 ; "
    " @p add.f32 r0 , r0 , %0; "
    " mov . f32 %0 , r0 ; "
    " } " : " +f " ( impact ) : "r" ( offset ) ) ;
}

Sliding window detector

Warp per N windows

Sliding window detector

Warp per N windows: analysis, N = 4

__device__ __forceinline__ static int pixel() { return threadIdx.x & 3; }
__device__ __forceinline__ static int stage() { return threadIdx.x >> 2; }

• Each warp loads 8 features for 4 windows. Each feature consists of 4 pixels. Total warp transactions: 8x4 of 16 bytes (instead of 32x4 of 4 byte).
• Warp is active while at least one of window positions is active.

uint desision = (confidence + impact > trace[t]);
uint mask = __ballot(desision);
uint pattern   = 0x11111111 << pixel;

if ( active && (__popc(mask & pattern) != 8)) active = 0;
if (__all(!active)) break;

Sliding window detector

Results
